- 當前位置：首頁產品與解決方案FPC材料消費類電子產品無膠PI補強板
-
-
無膠PI補強板
- 膠類型：內層：改性環氧膠系
- 東溢型號：DTIX
- 應用場景：FPC補強
- 簡 介：用于柔性電路板中插拔金手指等部位增強作用。
產品特性：
用于柔性電路板中插拔金手指等部位增強作用。

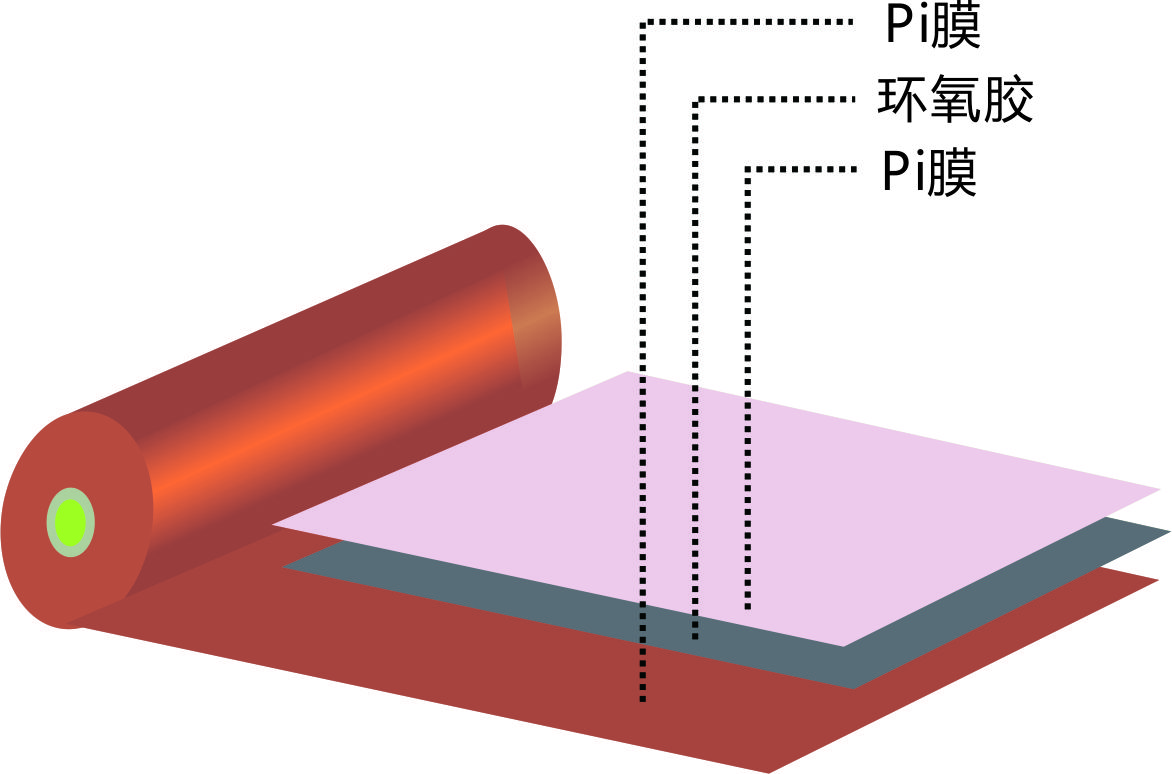

產品結構：
應用場景：
電子
攝像頭
燈條
產品參數：
| 東溢型號 | PI厚度 | 包裝規格 | ||
| DY model | PI Thickness | Packaging | ||
| DTIX100LX1(A) | 25 | 250MM*100M | ||
| DTIX100LX2(A) | 25 | 500MM*100M | ||
| DTIX200LX1(A) | 50 | 250MM*100M | ||
| DTIX200LX2(A) | 50 | 500MM*100M | ||
| DTIX200RX1(A) | 50 | 250MM*100M | ||
| DTIX300LX1 | 75 | 250MM*100M | ||
| DTIX300LX1(A) | 75 | 250MM*100M | ||
| DTIX300LX2(A) | 75 | 500MM*100M | ||
| DTIX400LX1 | 100 | 250MM*100M | ||
| DTIX500LX1 | 125 | 250MM*100M | ||
| DTIX600LX1 | 150 | 250MM*100M | ||
| DTIX700LX1 | 175 | 250MM*100M | ||
| DTIX700LX1(B) | 175 | 250MM*100M | ||
| DTIX800LX1 | 200 | 250MM*100M | ||
| DTIX900LX1 | 225 | 250MM*100M | ||
| DTIX900LX1(B) | 225 | 250MM*100M | ||
| DTIX900LX1(C) | 225 | 250MM*100M | ||
| DTIXA00LX1 | 250 | 250MM*50M | ||
| DTIXA00LX1(B) | 250 | 250MM*50M | ||
| DTIXA00LX1(C) | 250 | 250MM*50M | ||
| DTIXB00LX1 | 275 | 250MM*50M | ||
| DTIXB00LX1(B) | 275 | 250MM*50M | ||
| DTIXC00LX1 | 300 | 250MM*50M | ||
| DTIX200UX1(A) | 50 | 250MM*100M | ||
| DTIX300UX1(A) | 75 | 250MM*100M | ||
| DTIX300UX1 | 75 | 250MM*100M | ||
| DTIX400UX1 | 100 | 250MM*100M | ||
| DTIX500UX1 | 125 | 250MM*100M | ||
| DTIX600UX1 | 150 | 250MM*100M | ||
| DTIX600UX1(B) | 150 | 250MM*100M | ||
| DTIX700UX1 | 175 | 250MM*100M | ||
| DTIX700UX1(B) | 175 | 250MM*100M | ||
| DTIX800UX1 | 200 | 250MM*100M | ||
| DTIX900UX1(B) | 225 | 250MM*100M | ||
| DTIX900UX1(C) | 225 | 250MM*100M | ||
| DTIX100NX1(A) | 25 | 250MM*100M | ||
| DTIX200NX1(A) | 50 | 250MM*100M | ||
| DTIX300NX1(B) | 75 | 250MM*100M | ||
| DTIX400NX1(B) | 100 | 250MM*100M | ||
| DTIX500NX1(B) | 125 | 250MM*100M | ||
| DTIX600NX1(B) | 150 | 250MM*100M | ||
| DTIX600NX1(C) | 150 | 250MM*100M | ||
| DTIX700NX1(B) | 175 | 250MM*100M | ||
| DTIX800NX1 | 200 | 250MM*100M | ||
| DTIX800NX1(B) | 200 | 250MM*100M | ||
| DTIX900NX1(B) | 225 | 250MM*100M | ||
| DTIX900NX1F | 225 | 250MM*100M | ||
| DTIXA00NX1(C) | 250 | 250MM*100M | ||
| DTIXC00NX2(B) | 300 | 500MM*100M | ||
| DTIXC00NX2(C) | 300 | 500MM*100M |
